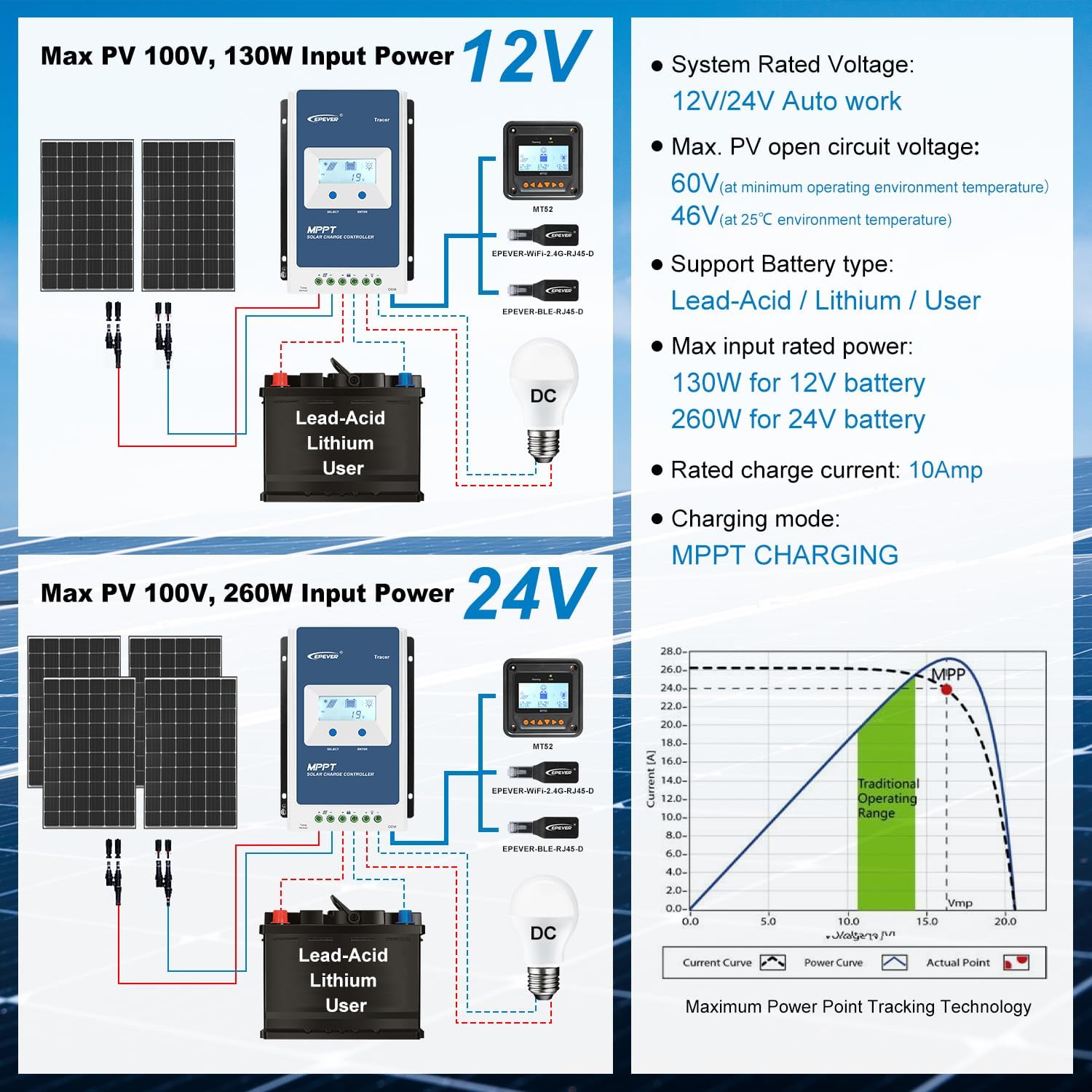

EPEVER 10A MPPT Solar Charge Controller 12V/24V Auto Work Common Negative Grounding with LCD Display Solar Panel Charger Regulator for Gel Flooded Sealed Lithium Battery

EPEVER MPPT Solar Charge Controller Tracer1210AN , 10A , 12V/24V Auto Work , Common Negative Grounding ,Max PV input power 130W/12V ,260W/24V . Tracer-AN series mppt solar charge controller is 2024 new upgrade version , Better funcations and advanced technology . Tracer1210AN Technical datas : Rated charge current:10A System nominal voltage :12V/24VDC Auto identifying Battery voltage range: 8V~32V Max.PV open circuit voltage:100VDC Max. PV input power :130W/12V , 260W/24V Terminal: 12AWG(4mm 2 ) Recommended cable: 12AWG(4mm 2 ) Dimension: 172*139*44mm Weight : 0.57kg Added Features then Tracer-A series : ★Blacklight LCD Display ★Common Negative Ground ★Compatible with lead-acid and lithium-ion batteries ★More Safety Protection Protection function : PV Over Current/power ;PV Short Circuit;PV Reverse Polarity;Night Reverse Charging; Battery Reverse Polarity;Battery Over Voltage;Battery Over Discharge;Battery Overheating,Controller Overheating ; Lithium Battery Low Temperature ; Load Short Circuit ;Load Overload;TVS High Voltage Transients Package List: 1 x 10A MPPT Solar Charge Controller Tracer1210AN 1 x Temperature sensor（Model:RT-MF58R47K3.81A） 1 x User Manual (English)

• EPEVER MPPT Solar Charge Controller 10A, 12V/24V Auto Work, Max PV 100V, Common Negative Grounding, Solar panels Max input power 130W for 12V Battery or 260W for 24V battery. Independent voltage regulation constant voltage output function, upgraded ultra-quiet design solves the problem of sharp noise from previous versions of the device.
• Compatible with Gel AGM Flooded Sealed batteries and Lithium(LiFePO4 (12V/24V), Li(NiCoMn)O2(12V/24V)) too. Battery temperature compensation function, Real-time energy statistics function, Overheating power reduction function;Multiple load work modes. Full-load operation without any drop in capacity within the range of working. Charging power and current limitation function which can ensure the product's service life.
• The communication port adopts professional protection chip,With RS-485 communication bus interface and Modbus communication protocol. Optional Accessories such as MT50 ,WiFi adapter ,BLE adapter ,eLOG01 , USB-RS485 cable to monitor and set more details parameters by mobile phone APP or PC software.
• Advanced MPPT technology, with efficiency no less than 99.5% ,Ultra-fast tracking speed and guaranteed tracking efficiency,Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time ; Wide MPP operating voltage range,High quality components, perfecting system performance, with maximum conversion efficiency of 98%,Accurate recognition and tracking of multiple-peaks maximum power point;
• Tracer1210AN MPPT solar charge controller is 2024 upgraded version, EPEVER factory officially authorised Original Products Suppllier( GolandCentury). Wide range applications such as communication base station, home system, street lighting system, marine system, RV solar system, and site monitoring system.
